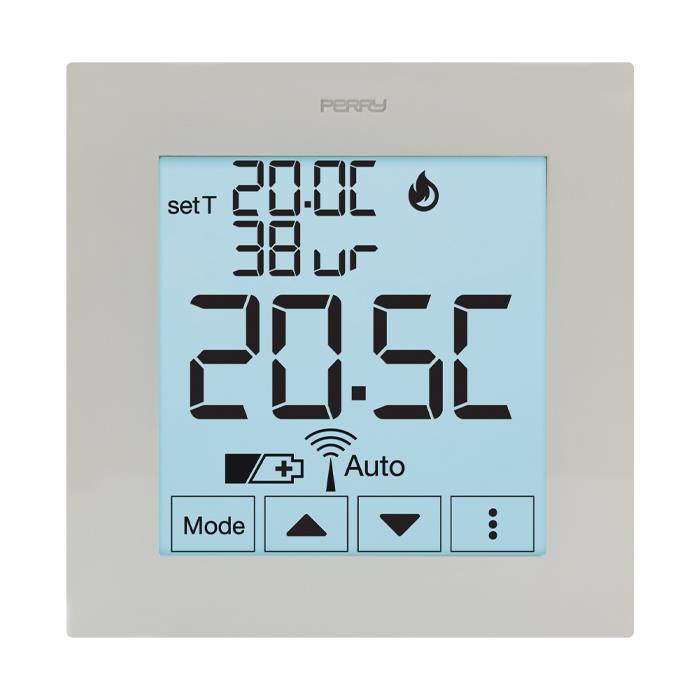

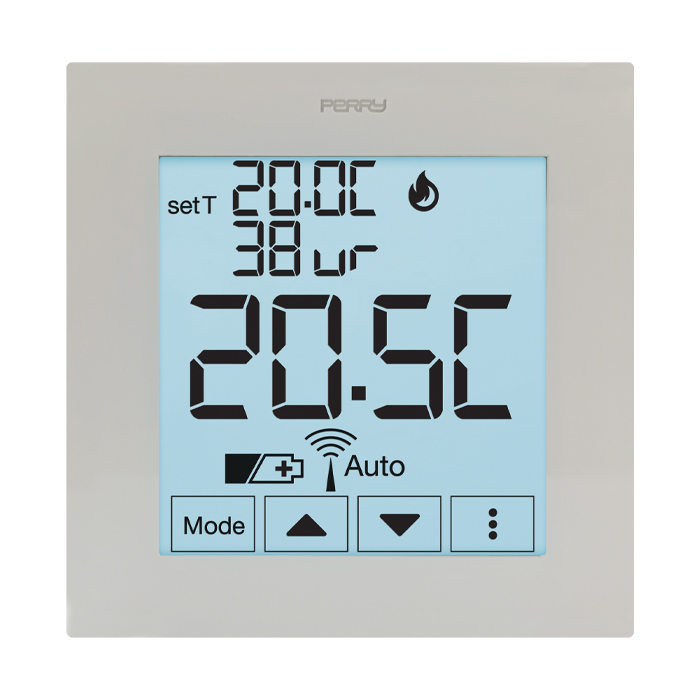

Wall-mounted thermostat humidistat 3V with realy output and radio 868MHz
TEUM01 is an extremely versatile product that can integrate temperature and humidity control in a single device.
TEUM01 can perform two functions, even simultaneously:
• Thermostat: regulates the temperature of a room
• Humidistat: regulates the humidity of a room
A relay and a radio transceiver are on board.

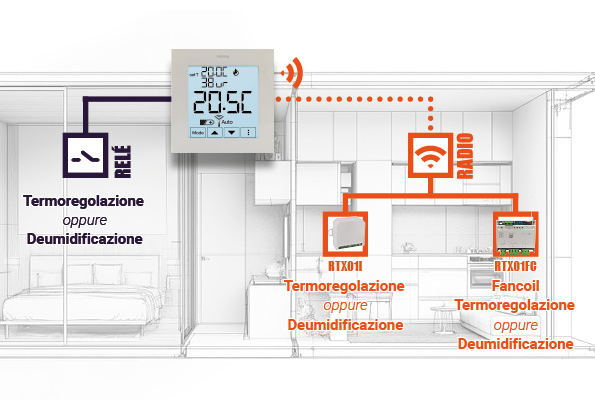

Depending on your needs, you can configure the control mode by combining the relay with one of the two functions and alternatively the radio control with the other.
Technical features
Power supply 3V 2x1.5V AA batteries – Alkaline, rechargeable NiMh or Lithium
Built-in room temperature probe
Built-in room humidity probe
3” LCD digital electronic display touch screen
Output 1 potential-free deviation contact: 5(3)A/250Vac
Operation with ON/OFF or modulating intervention
IP30
Bidirectional RF868MHz wireless radio connection
Connection range 30 ÷ 80 m
Temperature adjustment range +4 ÷ +37.7°C
Relative humidity % adjustment range 0% ÷ 100>#/p###
Precision ±0.1 °C
Gradient 1°K / 15 min
Temperature offset / Relative humidity offset
Temperature blocks / Humidity blocks
Autonomy approximately 2 years
Battery charge and/or fault indication
Dimensions (L x W x H) 82 x 27 x 83 mm
