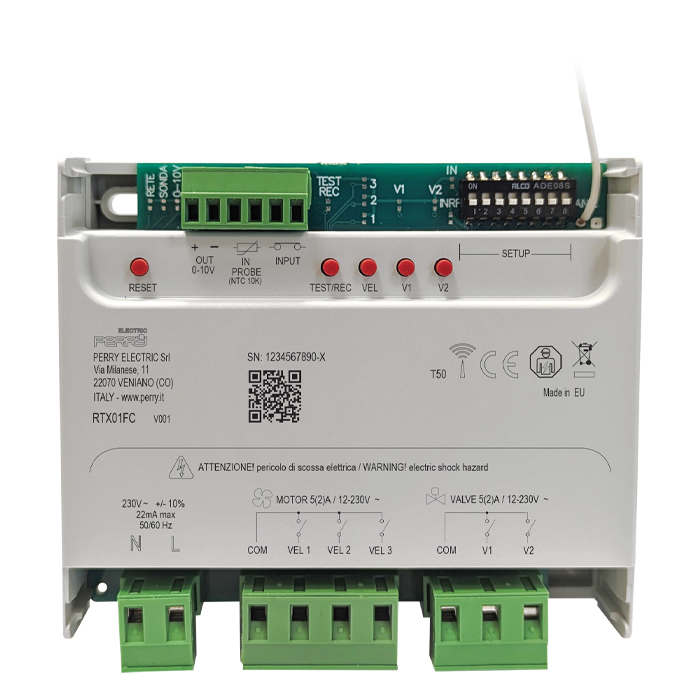

868 MHz radio transceiver for fan coils with 0-10V output and 3 speeds

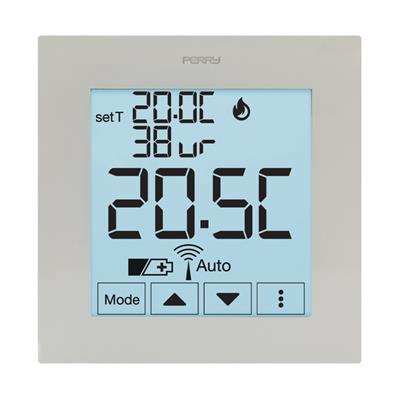

The RTX01FC transceiver can be combined with the TEUM01 humidistat thermostat to control the action of a fan coil, managing the opening of the valve and the fan speeds.
Technical features
Power supply 230V a.c. 50 Hz
Installations for 2 or 4 pipe systems
Bidirectional RF8687MHz wireless radio connection
Motor contact outputs: 3 relays 5(2)A 250V a.c.
Valve outputs: 2 relays 5(2)A 250V a.c.
Outputs 0.10V
SUM/INV outputs (2-pipe installations only)
NTC 10K W probe input
External contact input (window or presence)
Optical and acoustic status signals
Connection range 30÷80 m (depending on obstacles)
IP 00
Recessed installation
6-module DIN rail mounting
Dimensions (LxWxH) 106.5 x 36 x 93 mm
