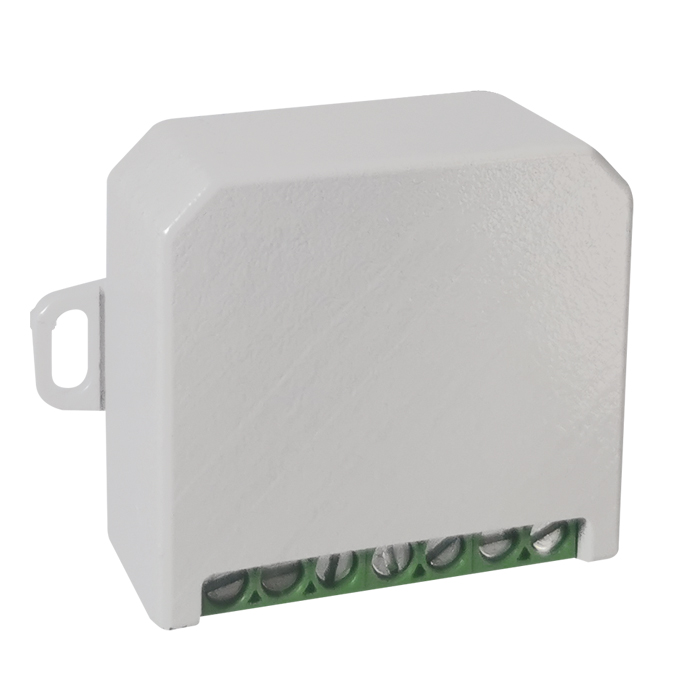

868MHz radio transceiver with input
The RTX01I transceiver can be combined with the TEUM01 humidistat thermostat to perform the remote contact function.
Multiple RTX01Is can be associated with a TEUM01 to control multiple loads at the same time, saving wiring time, even for different functions.
For example, a humidistat thermostat can be associated with:
• no. 1 RTX01I to control heating
• no. 1 RTX01I to control the dehumidifier
Technical features
Power supply 230V a.c. 50 Hz
Bidirectional RF8687MHz wireless radio connection
5(2)A 250V a.c. deviation relay (symbol)
ON/OFF function
Connection range 30÷80 m (depending on obstacles)
Built-in installation
Dimensions (LxWxH) 42.5 x 20 x 41.5 mm
