1TP TE530B

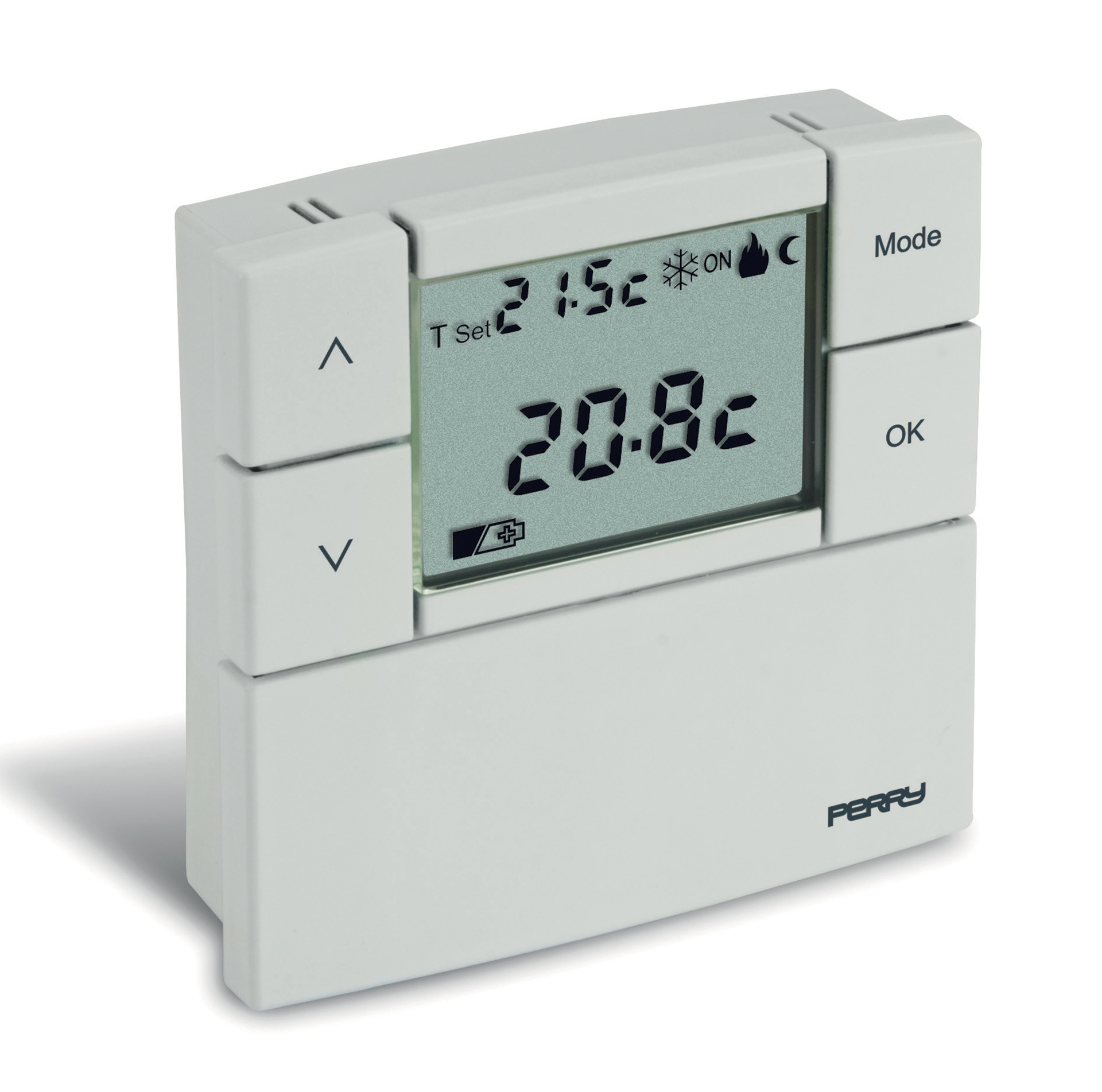

“ZEFIRO” series 80 x 80 digital thermostat 3V, white color


TECHNICAL SPECIFICATIONS

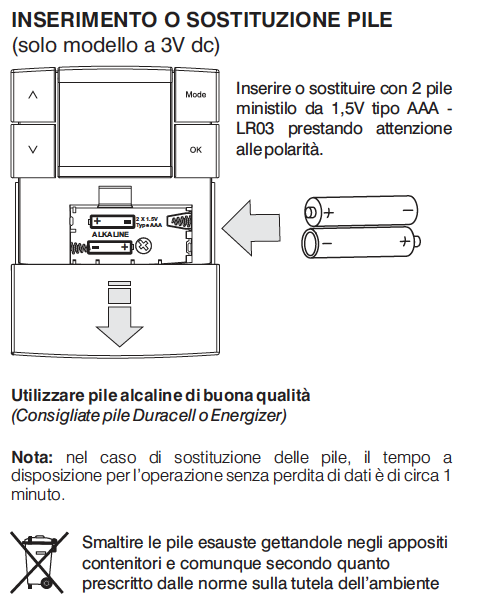

Power supply 3V – 2x1.5V AAA alkaline batteries

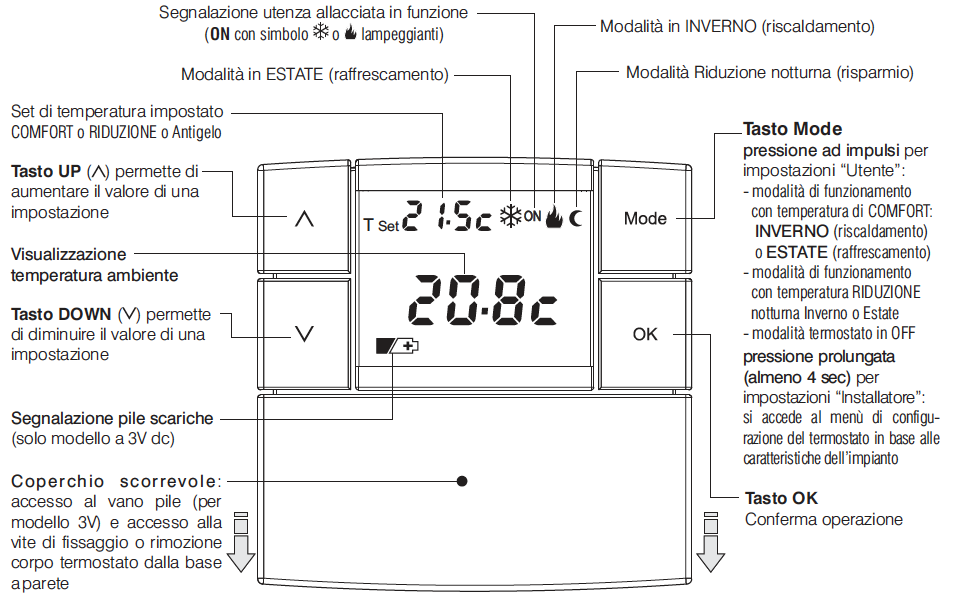

2” 1/3 LCD display

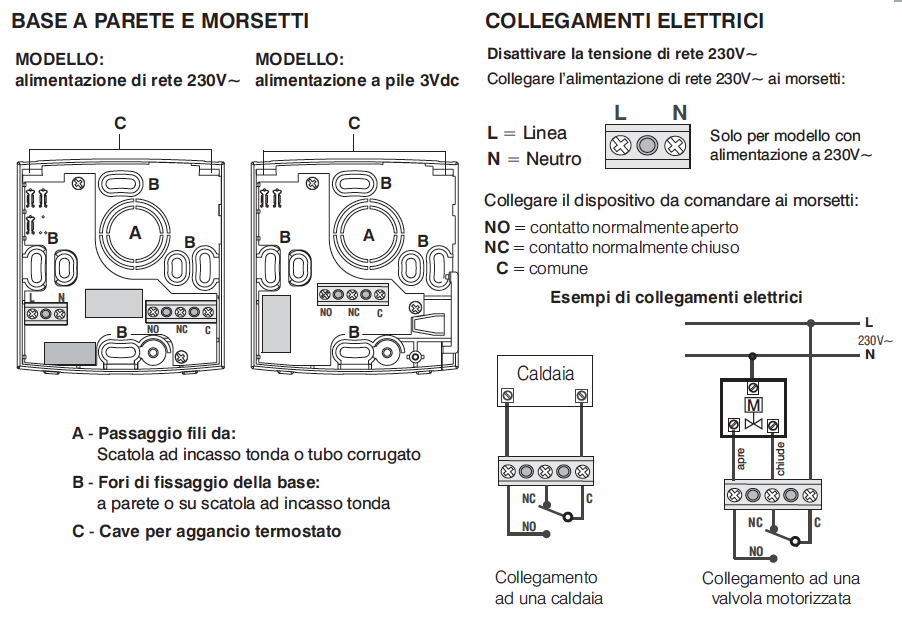

1 potential-free changeover contact output:
5 (3) A / 250Va.c.

ON / OFF operation with adjustable differential switch
0.2 – 2°C or proportional with 7/10/13/20 minutes
control period

Temperature levels 2 + anti-freeze

Temperature adjustable by 0.1°C sets

LOW BAT indicator

Autonomy: 24 months

Relay status indicator

SUM/WIN control

Temperature setting lock

Temperature offset: adjustable according to product
positioning

Temperature setting range: 5 - 37.7°C

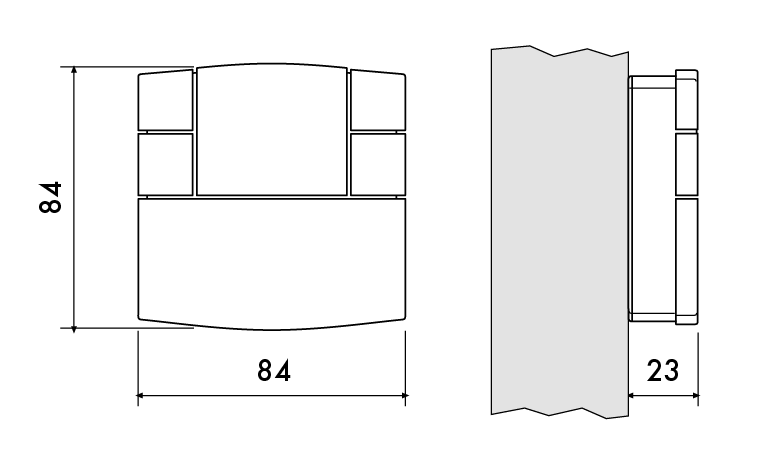

Dimensions (L x W x H) 84 x 23 x 84 mm
