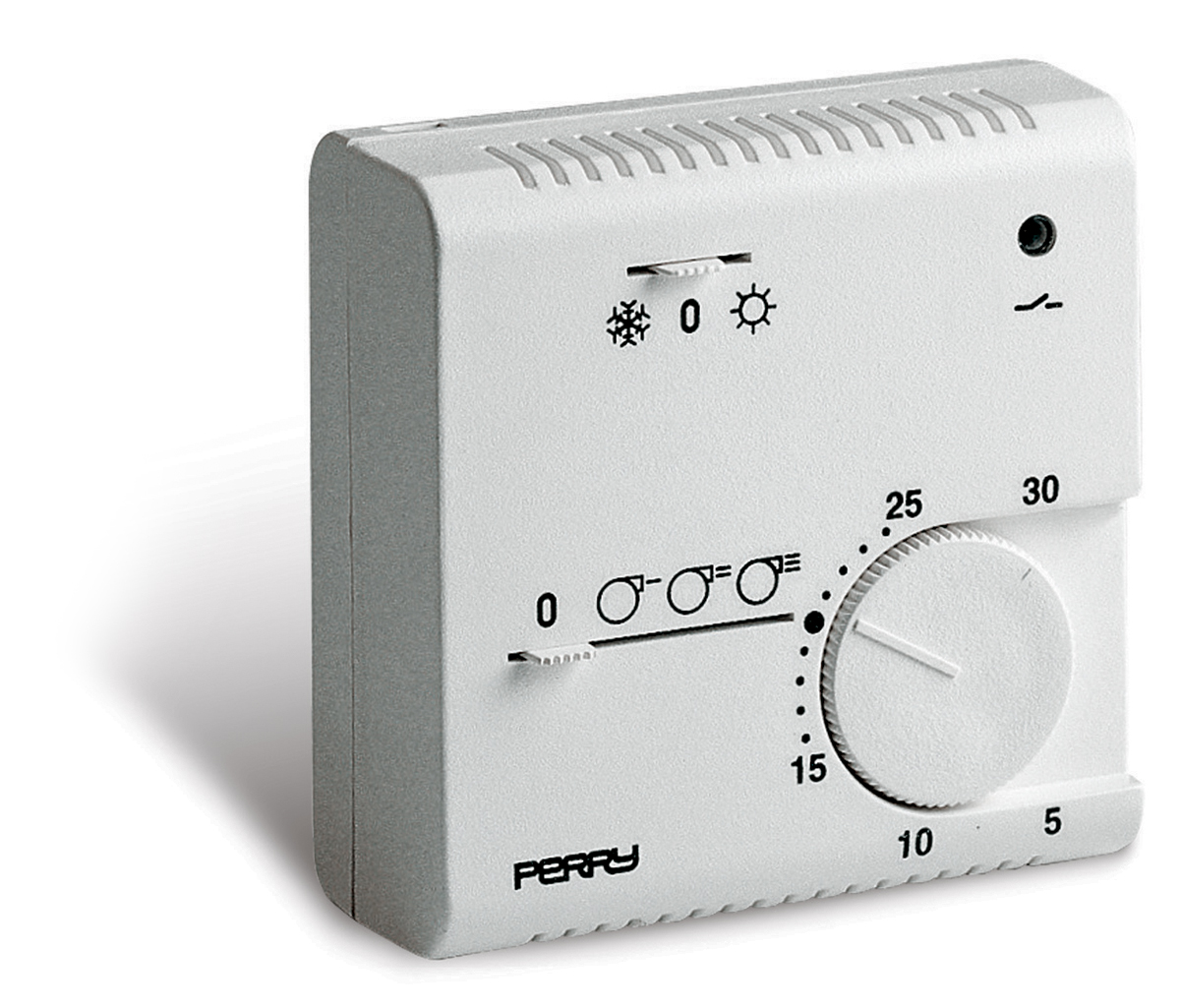

“EUROPA” series electronic thermostat for “Fan Coil” with SUMMER / OFF / WINTER control, white color
• Power supply 230V a.c. 50-60Hz
• 1 polarized NO contact output: 5 (2 ) A / 250V a.c.
• Proportional operation with fixed control period
• SUMMER / OFF / WINTER control
• 0 I° II° III° Speed control
• Relay status indicator LED
• Temperature adjustment on graduated scale with mechanical index set-point
• 1 Temperature level with continuous adjustment
• Set-point with mechanical temperature lock
• Temperature setting range: 5 - 30°C

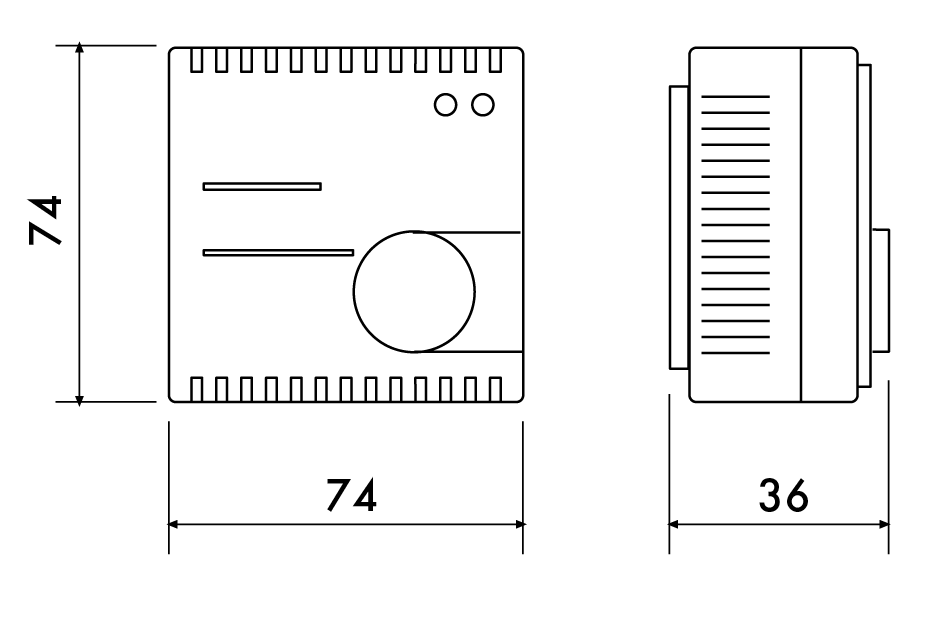

• Dimensions (L x W x H) 74 x 36 x 74 mm
