1SP SP020

Recess mounted in ceiling infrared presence detector with “zero crossing” - IP 20


Recess mounted in ceiling

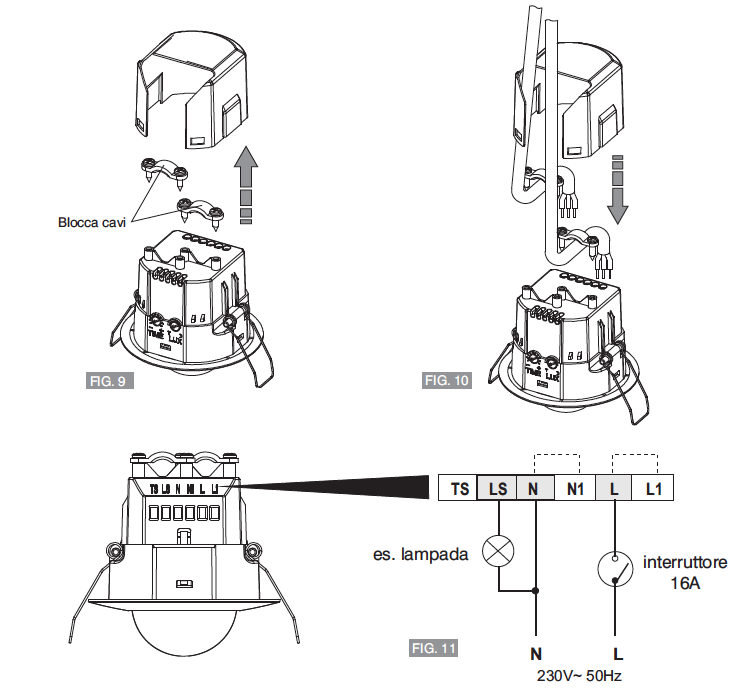

Power supply 230V a.c. 50 Hz

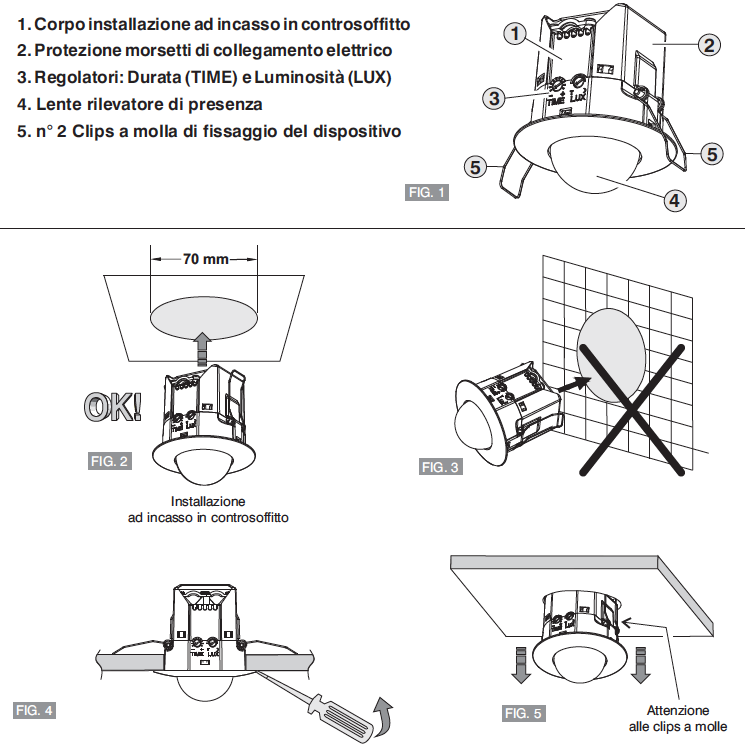

Diameter installation hole Ø 70mm

Maximum lighting load:

incandescent lamps 2.000W

fluorescent lamps (uncompensated) 480W

fluorescent lamps (compensated in parallel) 250W

CFL / LED lamps (230V) 7W ÷ 23W max 8 lamps

“ZERO CROSSING” on relay - Contact closure with zero load to increase the connectable load and relay endurance

Protection degree IP 20

Degree of pollution normal

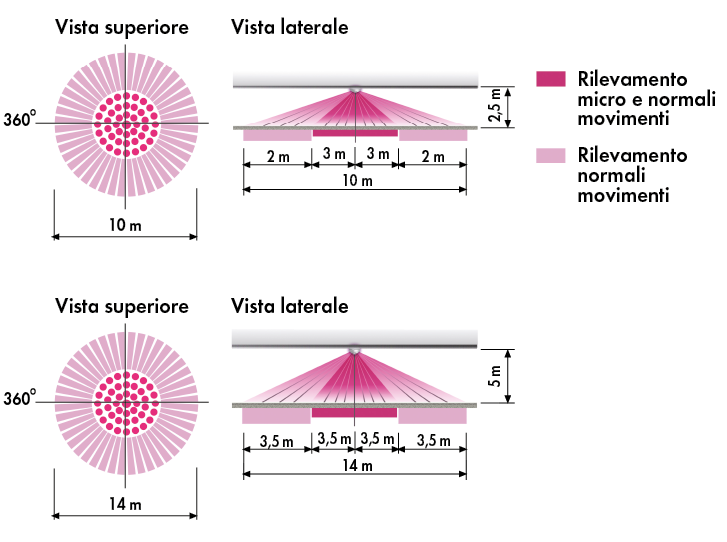

Detection angle 360°

Detection distance max 14 m

Adjustment of deactivation delay 10 settings
5, 10, 20, 40, 80, 160 seconds
5, 10, 20, 40 minutes

Lux adjustment from 30 to 200 LUX

Insulation class II

CE marking reference standard LVD/EMC EN60669-2-1

Dimensions (DxW) Ø 79,80 x 91 mm

Height of lens 18mm
