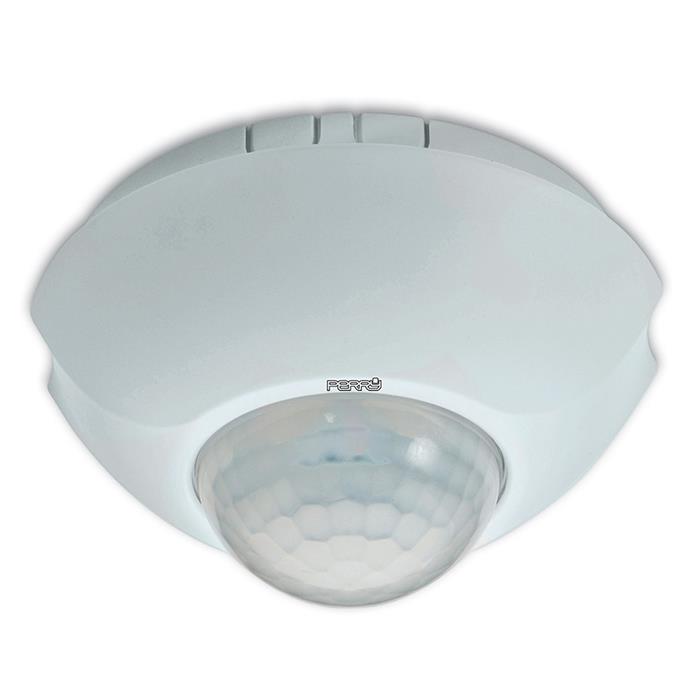

Ceiling mounted infrared presence detector with “zero crossing”, with potential free contact – IP 20
TECHNICAL SPECIFICATIONS
Ceiling mounted
Power supply 230V a.c. 50 Hz
Maximum lighting load:
incandescent lamps 2.000W
fluorescent lamps (uncompensated) 480W
fluorescent lamps (compensated in parallel) 250W
CFL / LED lamps (230V) 7W ÷ 23W max 8 lamps
“ZERO CROSSING” on relay - Contact closure with zero load to increase the connectable load and relay endurance
Detection angle 360°
Detection distance max 12 m
Lux adjustment from 5 to 300 LUX
Adjustment of deactivation delay 2’ - 15’
Insulation class II
Dimensions (DxW) Ø 130 x 70 mm
