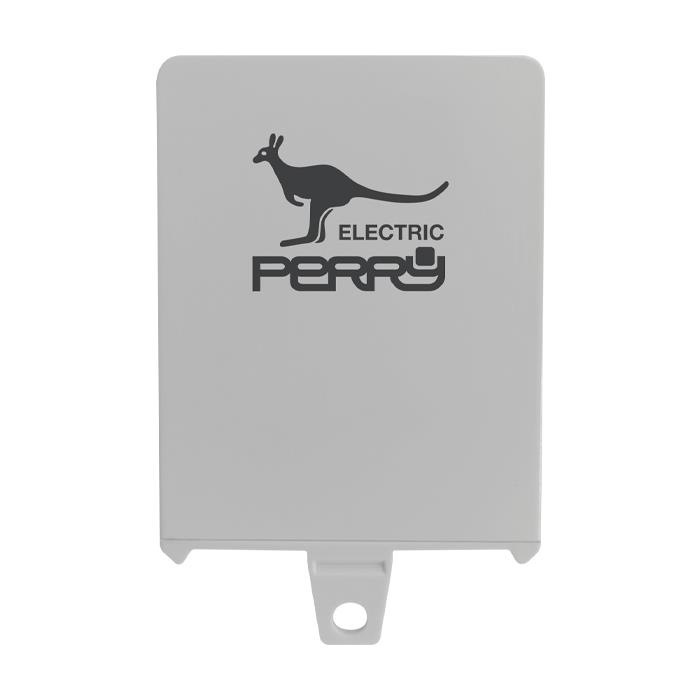

The new relay 1RI01230SHHH is equipped with connection of 4 terminals: this allows to control the load wiring the button with the Phase or the Neutral.
Technical features
Relay output NO 8A / 250 V
Max. incandescent lamps 800W
Max. halogen lamps 800W
Max. fluorescent lamps 360W
Max. LED lamps 6x7รท23W
Max. illuminated buttons 4 LED - 10 Neon
ON/OFF sequential operation
Sequential operation ON/OFF
1 input for button on both Phase and Neutral
Flush-mounted installation in junction box or wall back box
Holes predisposition for fixing with screws
Dimensions (l x W x H) 35 x 22,5 x 45 mm
