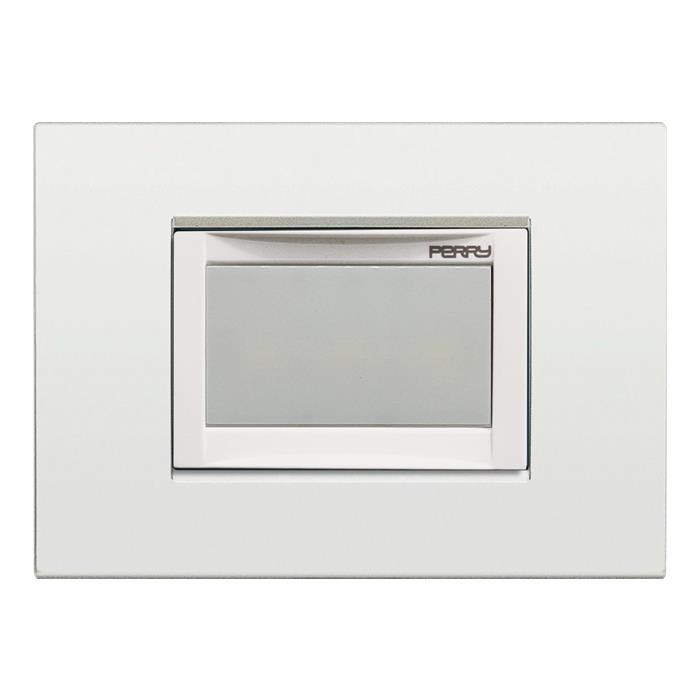

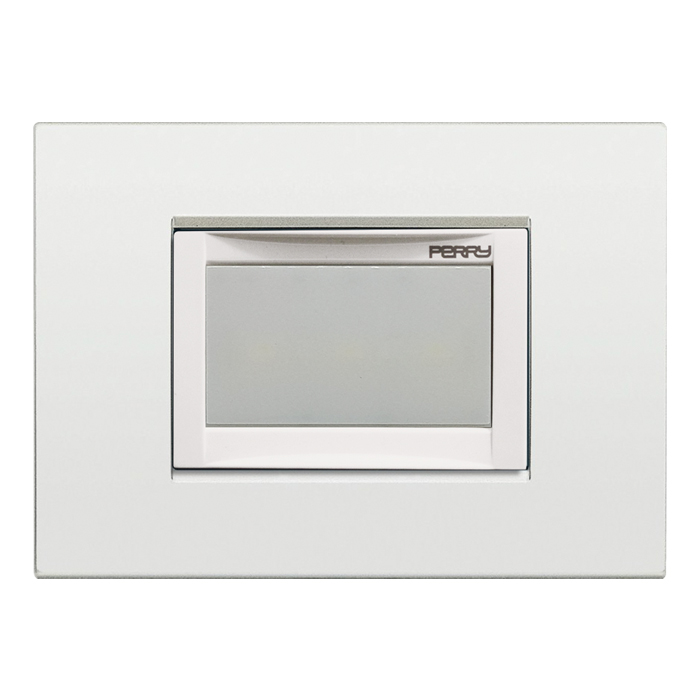

Recessed emergency lamps 3-Modules
Recessed emergency lamps 3-Modules
3-MODULE recessed emergency lamps comply with Italian standard CEI 64-8 and standard EN60598-2-22 that define the characteristics of recessed products for emergency lighting.
MAXIMUM VERSATILITY:
SE/SA/dimmable step lights
According to the position of a jumper in the terminal block placed at the back, the 3-MODULE lamp offers three different operations.
SE: With no voltage, the LED lights to its maximum power.
SA: Lamp always on (it is possible to set different intensities of lighting)
DIMMABLE
By connecting a push button to the lamp, it is possible to switch on, switch off and dim the intensity of the LED. The level of set luminosity is memorised until the next adjustment.
NB: it is not possible to groups of lamps to one push button
LED SIGN
The two Led signals (red and green) communicate the operation condition of the lamp:
Green: operative - battery charging and when there is a blackout, it activates safety lighting
Red: fault/malfunction.
REPLACEABLE BATTERY
It is possible to replace the rechargeable batteries by removing the front panel from its housing. The batteries are two normal AA rechargeable ones easily available.
INHIBIT FUNCTION
The function INHIBIT disable the lamp and it doesn’t allow to enter in emergency mode until it is not manually unlocked.
Power supply 230V AC ±10% 50 Hz
3 high efficiency LEDs x 0.5W - white color
Luminous flux 72 lumens in SE mode
Autonomy in case of blackout about 2 hours
Minimum charging time 24 hours
Replaceable battery Ni-MH 2.4V - 2000 mAh
Absorption 13 mA @ 230V~ 1.7W
Protection degree IP20 recessed part, IP40
Cable section with terminals 1.5..... 2.5 mm²
Pollution degree normal
Installation 3 civil modules in recessed box type 503
Operating temperature 25°C
Storage temperature from -10°C to +65°C
LVD/EMC marking standard EN60598-1,
EN60598-2-2, EN62471, EN55015, EN61547
Including 3 front panels: glossy white, anthracite and matt silver
Dimensions (LxWxH) 65 x 53 x 47 mm
