1IO 0012D15/M230

Digital daily time switch module with tappets and display 60x60 - 230V 50/60Hz


Power supply voltage 230V a.c. 50 - 60Hz

Contact rated data 16 (2) A / 250V a.c.

Max program number (ON-OFF) 96 (daily) / 672 (weekly)

ON - OFF minimum connection time 15 minutes

Displays round LCD display

Max commutable power 3500 VA (for individual contact)

Power: Incandescent LPs 2300 W

Power: Fluorescent tube LPs, not compensated 1000 W

Power: Parallely comp. fluorescent tube LPs 500W (tot capacity 70 µF)

Power: Compact, fluorescent LPs 600W

Max cross-section of wires to terminals 2.5 mm2

Protection degree (IP) IP 40 (wall-mounted - on rear of switchboard)

Type of output terminals with captive screw

Insulation class II

ON / OFF relay signalling ON / OFF in LCD display

Charge reserve max. approx. 15 days

Type of reserve NiMH rechargeable battery

Time tolerance + - 1 sec / day

Operating temperature limits 0°C / +50°C

Storing temperature -10°C / +50°C

Type of installation wall-mounted / on rear of switchboard / recessed

Housing thermoplastic - grey RAL 7035

Type of use civil / tertiary / industrial

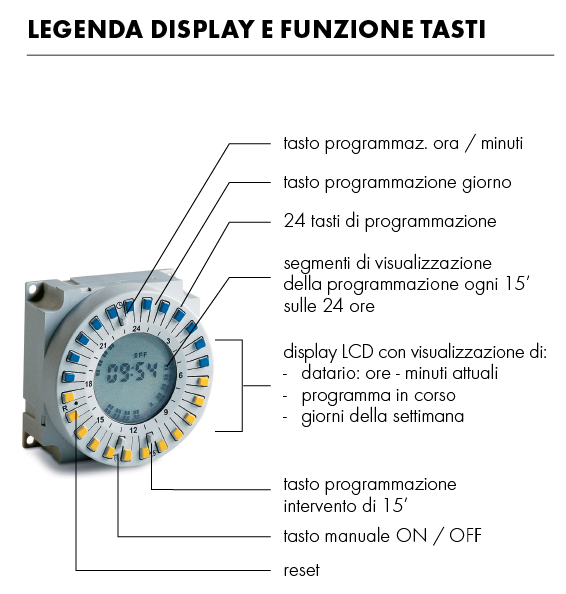

Controls programming keys - reset key ON / OFF manual function key

Clock setting accuracy digital for hours / minutes

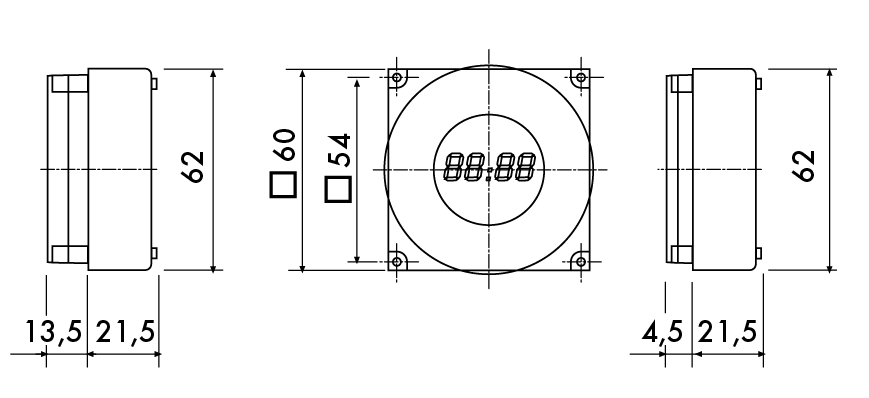

Dimensions (L x W x H) mm 72 x 67.5 x 101
