Digital daily time switch module with tappets and display 60x60 - 230V 50/60Hz
Digital daily time switch module with tappets and display 60x60 - 230V 50/60Hz
TECHNICAL
SPECIFICATIONS
Power supply voltage 230V a.c. 50 - 60Hz
Contact rated data 16 (2) A / 250V a.c.
Max program number (ON-OFF) 96 (daily) / 672 (weekly)
ON - OFF minimum connection time 15 minutes
Displays round LCD display
Max commutable power 3500 VA (for individual contact)
Power: Incandescent LPs 2300 W
Power: Fluorescent tube LPs, not compensated 1000 W
Power: Parallely comp. fluorescent tube LPs 290 W (tot capacity 35 µF)
Power: Compact, fluorescent LPs 105 W (7 x 15 W)
Power: LED MAX n. 15 x 4 W / 10 x 8 W / 7 x 15 W
Max cross-section of wires to terminals 2.5 mm2
Protection degree (IP) IP 40 (wall-mounted - on rear of switchboard)
Type of output terminals with captive screw
Insulation class II
ON / OFF relay signalling ON / OFF in LCD display
Charge reserve max. approx. 15 days
Type of reserve NiMH rechargeable battery
Time tolerance + - 1 sec / day
Operating temperature limits 0°C / +50°C
Storing temperature -10°C / +50°C
Type of installation wall-mounted / on rear of switchboard / recessed
Housing thermoplastic - grey RAL 7035
Type of use civil / tertiary / industrial
Controls programming keys - reset key ON / OFF manual function key
Clock setting accuracy digital for hours / minutes

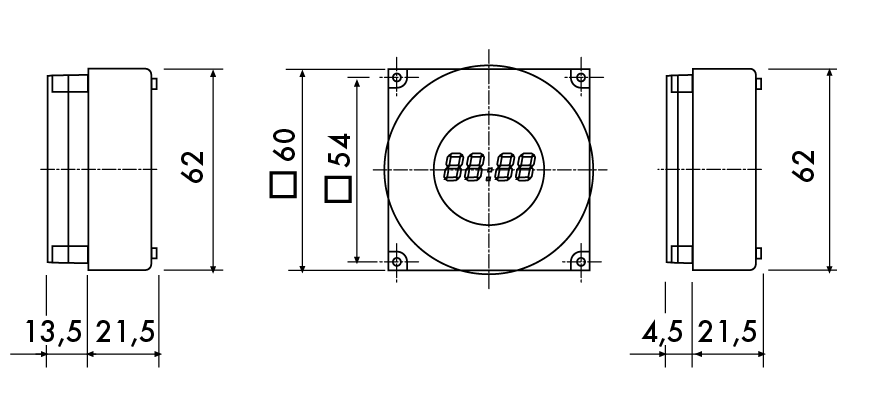

Dimensions (L x W x H) mm 60 x 26 x 60
