1IC 7242

Photocell lighting control switch for wall-mounting and/or pole installation

Photocell lighting control switch for wall-mounting and/or pole installation

TECHNICAL SPECIFICATIONS

Power supply 230V a.c. 50 / 60Hz
Outdoor installation
Output 1 polarized NO contact: 16 (2) A / 250Va.c.
Connection with cables up to 2.5 mm2
Wiring with shielded cable diameter 4-9 mm
Intervention threshold adjustment trimmer, 2 - 200 Lux
Threshold signalling LED
Anti-UV opaline housing
Protection degree IP 54

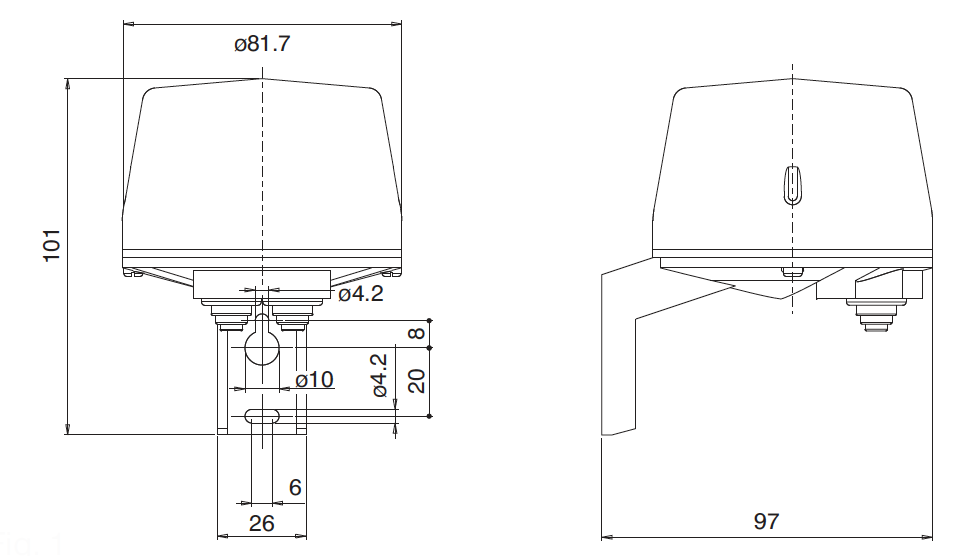

Dimensions (Ø L x W x H) Ø 82 x 97 x 101 mm
