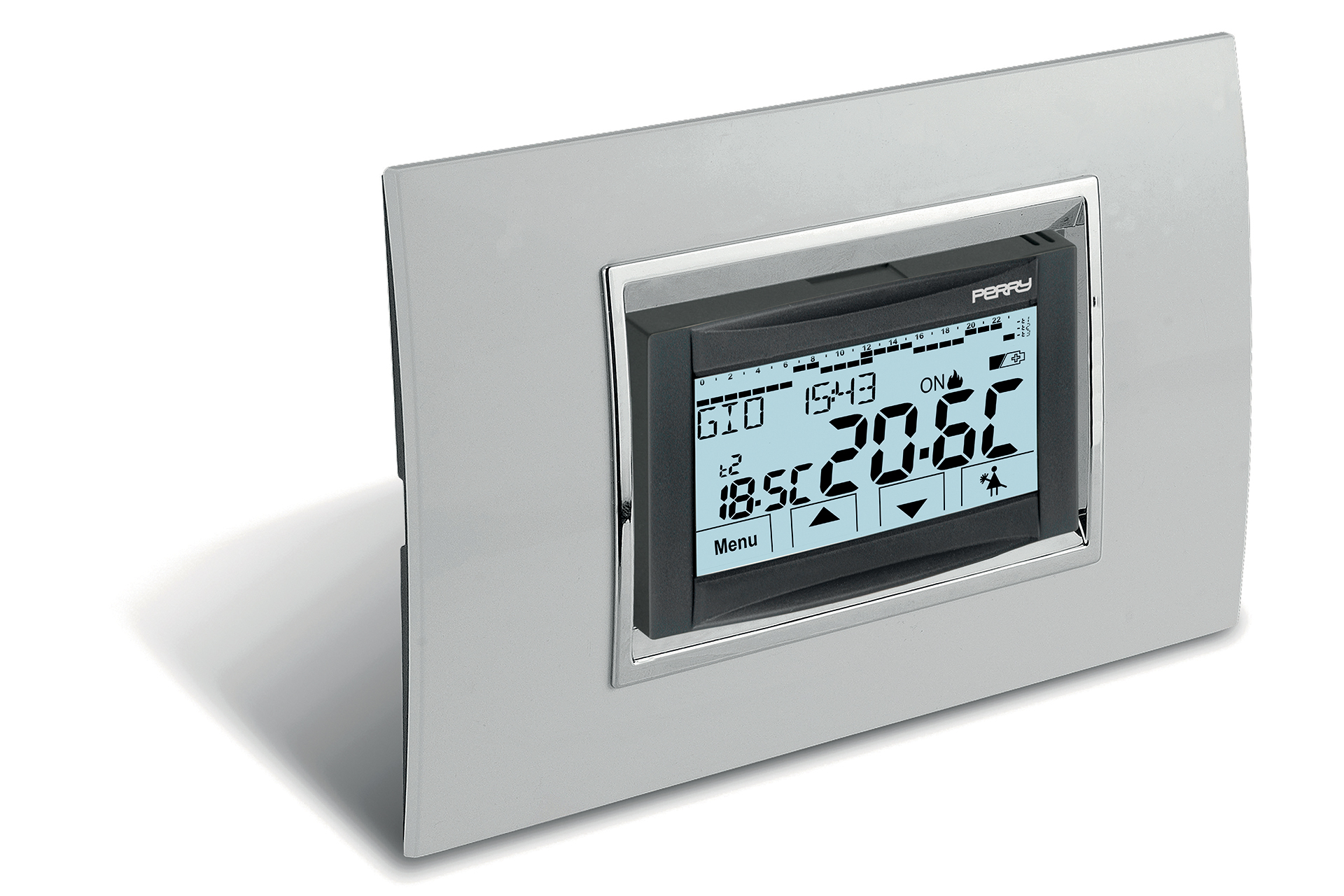

Recessed weekly digital programmable thermostat menu 230V Serie “MOON” TOUCH SCREEN
Multilanguage menu
Power supply: 230V 50-60Hz

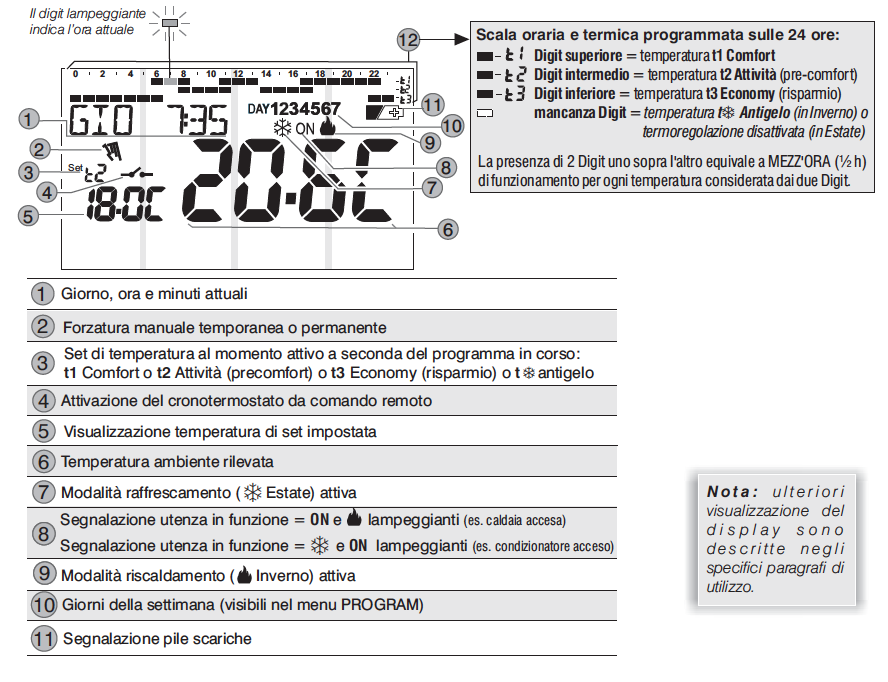

backlit LCD display

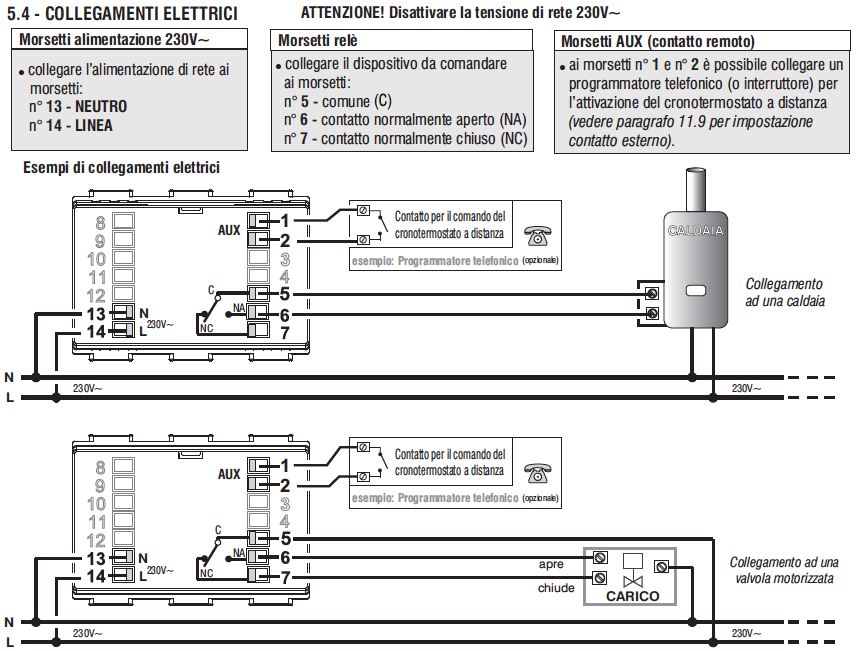

Output: 1 potential free changeover contact: 5 (3) A / 250V a.c.
ON / OFF operation mode with adjustable differential from 0.2 - 1.2 ° C or modulating with control period from 7 - 20 min
4 preset modifiable programs (2 Winter + 2 summer)
Temperature levels: 3 + anti-freeze
Independent manual temperature
Temperature adjustable by 0,1°C sets
Minimum programming: 30 minutes
Temporary / permanent manual operation
Automatic daylight saving time change
Pausing for household cleaning
Input for telephone programmer or remote contact
Summer / Winter control
Holidays program
Pump activation program
Temperature setting lock
User password
Installer password
Backlighting: timed and fixed
Relay status indicator
Temperature offset: adjustable according to product positioning
Temperature setting range: 5 - 37.7°C
Recessed mounting

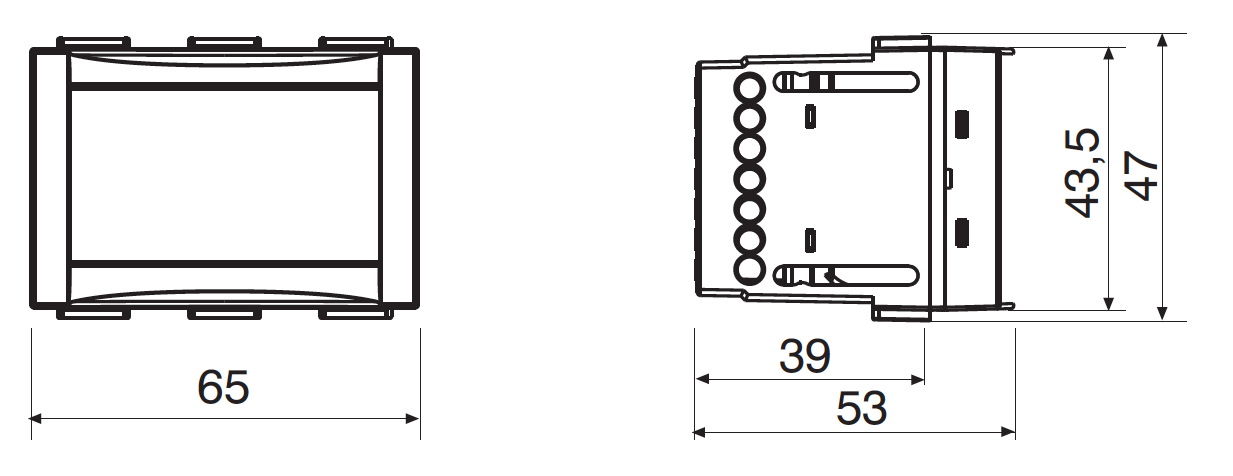

Dimensions: (L x W x H) 65 x 53 x 47 mm
