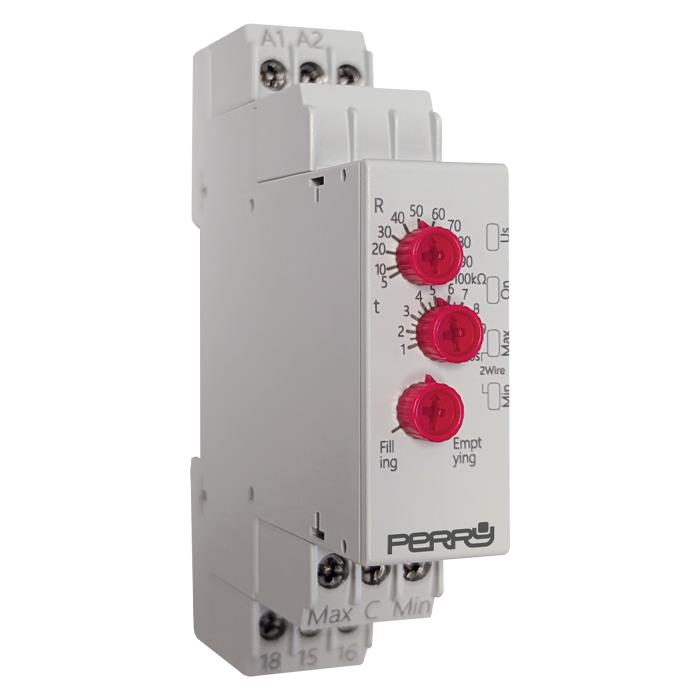

Electronic level regulator 24-230 V 1 Din, 2 probes included
Electronic level regulator 24-230 V 1 Din, 2 probes included
Technical features
Power supply AC24V, AC150V, AC220V, AC380V 50/60Hz
DC24V allowed fluctuation range ± 15%
LTH contact capacity: 8A; Us/Ie: 250V/8A 415V/4A
Adjustable sensitivity 5kΩ … 100kΩ
Adjustable intervention delay 0,1s … 10s
2-wire 3-wire connection
Cable length < 100 m
Electrical life 100.000 cycles
Mechanical life 1.000.000 cycles
Antipollution degree 3
Insulation Class IP20
Panel or Din rail mounting
Working temperature -25 ÷ +55° C
Allowed relative humidity ≤ 50% (40°C) non condensing
Dimensions (LxWxH) 18 x 69 x 90 mm
