1SP SP016

Semi-recessed mounted in ceiling infrared presence detector with “zero crossing” – IP 20

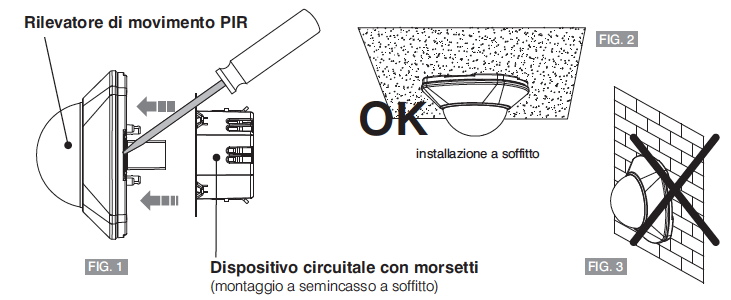

Ceiling mounted

Power supply 230V a.c. 50 Hz

Maximum lighting load:

incandescent lamps 2.000W

fluorescent lamps (uncompensated) 480W

fluorescent lamps (compensated in parallel) 250W

CFL / LED lamps (230V) 7W ÷ 23W max 8 lamps

“ZERO CROSSING” on relay - Contact closure with zero load to increase the connectable load and relay endurance

Protection degree IP 20

Degree of pollution normal

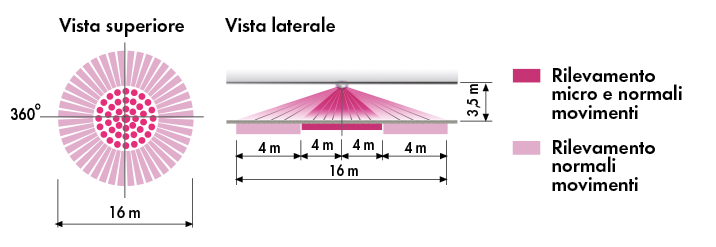

Detection angle 360°

Detection distance max 16 m

Adjustment of deactivation delay 5” - 12’

Lux adjustment from 30 to 200 LUX

Insulation class II

Infrared receiver for remote control

CE marking reference standard LVD/EMC EN60669-2-1

Dimensions (DxW) Ø 97 x 85 mm
