Ceiling mounted infrared presence detector with “zero crossing” – IP 20
TECHNICAL
SPECIFICATIONS

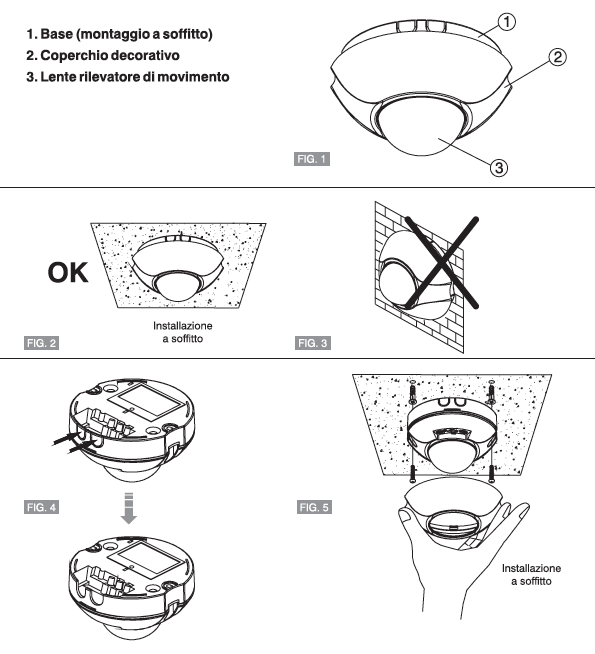

Ceiling mounted
Power supply 230V a.c. 50 Hz
Maximum lighting load:
incandescent lamps 2.000W
fluorescent lamps (uncompensated) 480W
fluorescent lamps (compensated in parallel) 250W
CFL / LED lamps (230V) 7W ÷ 23W max 8 lamps
“ZERO CROSSING” on relay - Contact closure with zero load to increase the connectable load and relay endurance
Protection degree IP 20
Degree of pollution normal

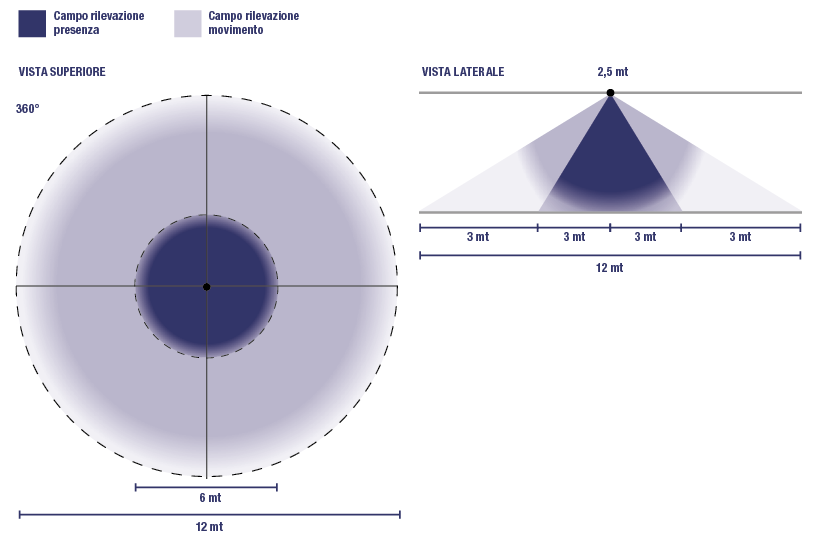

Detection angle 360°
Detection distance max 12 m
Adjustment of deactivation delay 2’ - 15’
Lux adjustment from 5 to 1.000 LUX
Insulation class II
CE marking reference standard LVD/EMC EN60669-2-1
Dimensions (DxW) Ø 130 x 70 mm
